Eagle
Rugged and robust datalogger with GPS and Bluetooth® Gateway featuring an impressive array of inputs/outputs and sensor interfaces
- High-precision GPS/GLONASS tracking device
- Bluetooth® 5.0 Gateway for tagged asset management and sensor monitoring
- Flexible Power Options – 4 x C Alkaline or LTC Batteries or wired to permanent power
- 2 x Analog Inputs, 3 x Digital Inputs, 2 x Switched Ground Digital Outputs, 2 x 4-20mA Inputs
- I²C, SDI-12 and RS-485 Interface
- Weatherproof and ultra-rugged IP67 Housing

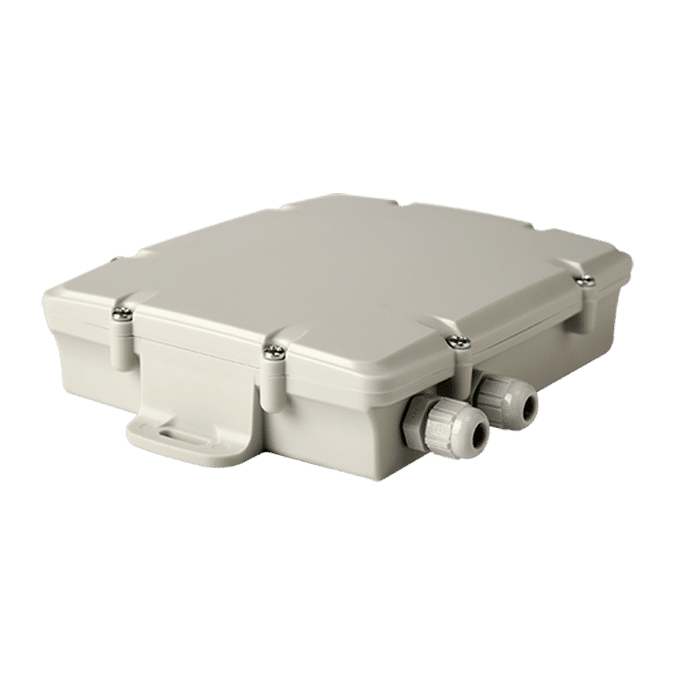

Eagle-Angle
Eagle-PCB-Batteries

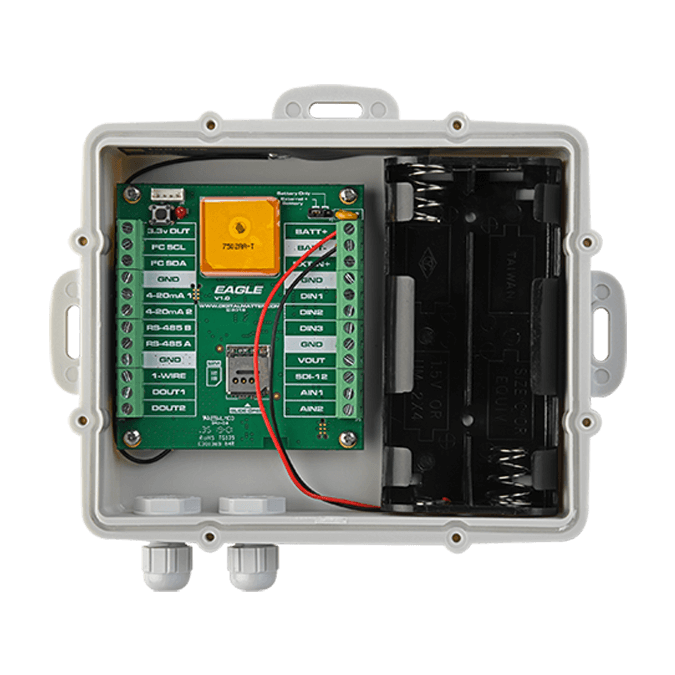

Eagle-PCB

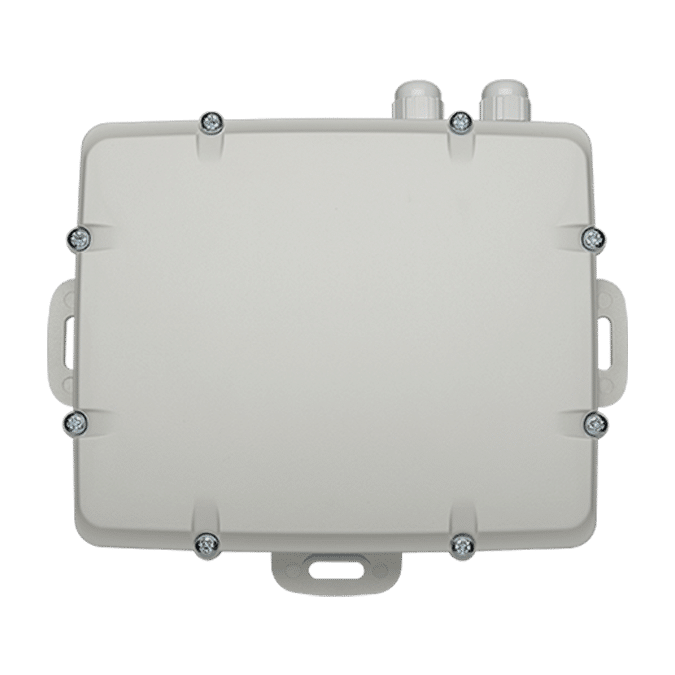

Eagle-Bottom

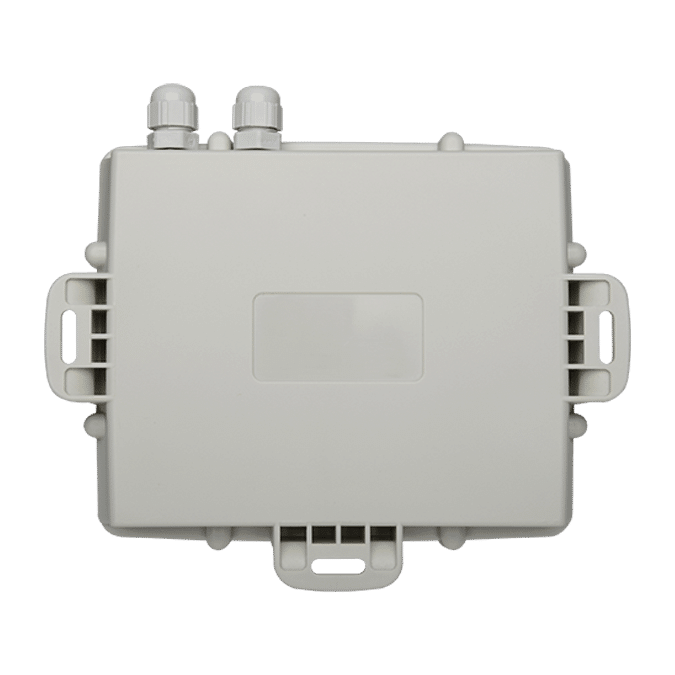

Eagle-Top

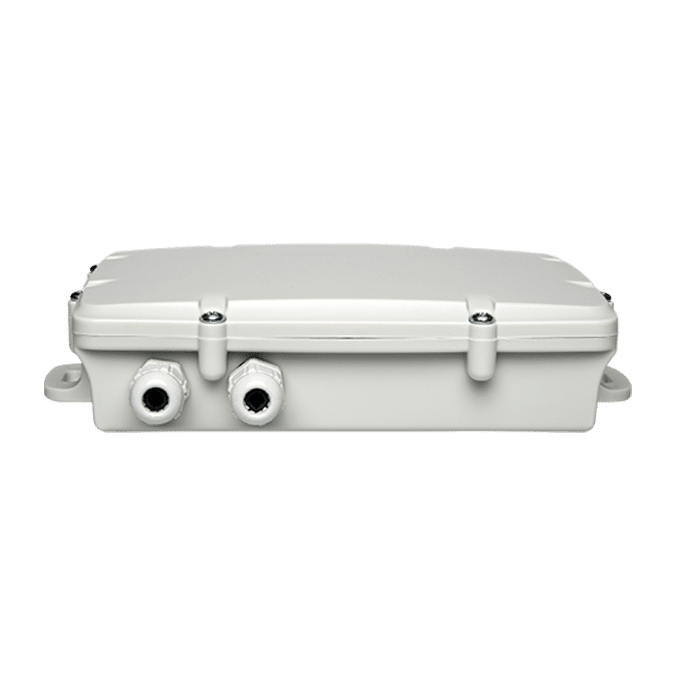

Eagle-Side-Inputs
Eagle-Side
Eagle Features
High Precision GPS
GPS and GLONASS positioning systems are used simultaneously with a 72 channel high sensitivity receiver (-167dBm) for enhanced accuracy and faster fixes.
Bluetooth® Gateway
Bluetooth® 5.0 Gateway for affordable tagged asset management and sensor monitoring applications.
Rugged & Weatherproof
IP67 rated housing ensures the device can withstand fine dust, high-pressure spray, submersion for 30 minutes in 1m of water, and extreme temperatures.
Battery-Powered or Hardwired
The Eagle can be powered by 4 x C Batteries or hardwired to permanent power.
Temperature Tolerance
The Eagle can be powered with optional Lithium Thionyl Chloride (LTC) batteries for enhanced temperature tolerance and increased battery life.
Inputs / Outputs
Interface with a range of devices and switches to fit any application including door or gate open/close, water meters, pump running/not running, and more.
Accelerometer
3-Axis Accelerometer to detect movement and high g-force events.
I²C and SDI-12 Interfaces
Connect a range of sensors such as temperature, humidity, moisture, depth, and more for environmental monitoring.
Advanced Geofencing
Create custom geofences and alerts if an asset enters or leaves specific locations. Geofences can also be downloaded directly to the device for enhanced location-based behaviors.
Run Hour Monitoring
Capture run hours based on movement to understand and optimize asset utilization.
Preventative Maintenance
Set reminders based on distance traveled, run hours, and more to reduce maintenance and repair costs.
Easy Install
Multiple installation options for covertly securing devices to assets with screws, bolts, cable ties, rivets, and more.
Scalable IoT Device for Advanced Applications
The “Swiss Army Knife” of Tracking – Interface with a range of devices, switches, and sensors to fit complex IoT applications.
Bluetooth® Low Energy Gateway
The Eagle also serves as a Bluetooth® 5.0 Gateway for affordable tagged asset management and sensor monitoring applications.
Temperature & Humidity
Connect a range of sensors such as temperature, humidity, moisture, depth, and more for monitoring sensitive environments or assets.
Infrared Thermal Sensors
Interface with Infrared Thermal Sensors for a cost-effective alternative to more expensive high-end thermal cameras.
Pulse Counting
Remotely monitor events such as water, electricity, or gas consumption, door open/close counts, and more with wireless pulse counting.
Tank Level Monitoring
Monitor water tank levels remotely and configure alerts when specific levels are reached.
Pump Control
Configure a relay to switch pumps off when not in use and on again as required.
Eagle Resources
Explore our comprehensive knowledge base to configure, connect and install the Eagle.
Datasheet
View and download the Eagle datasheet.
FAQs
Frequently asked questions about the Eagle.
Getting Started Guide
Learn how to assemble, connect and install the Eagle.
Battery Life
Calculate estimated battery life based on several tracking parameters.
Battery Recommendations
Battery recommendations for the Eagle.
Supported Sensors and Inputs
Supported sensors and inputs for the Eagle.
Connecting Infrared Sensors
The MLX9060 infrared camera can be connected directly to the Eagle.
Frequently Asked Questions
Eagle FAQs.
Technical Drawing
Technical Drawing for device dimensions.
Take control of your data
Integration
Flexible integration options via Webhook, TCP or HTTP/HTTPS, Direct Integration or Data Splitting.
Security
Military-level AES-256 Encryption to protect the integrity and confidentiality of your telematics data.
