Oyster Edge
Ultra-rugged, Indoor/Outdoor battery-powered GPS asset tracking device and Bluetooth® Gateway. Features cloud-based location solving for 10+ years of battery life.
- GNSS (GPS/BeiDou), Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management
- Bluetooth® 5.2 Gateway for tagged asset management and sensor monitoring
- Deploy-once battery life with up to 10+ years on only 3 x AA user-replaceable batteries
- Cloud-based location solving (versus on-device) for substantial power savings
- Tracks assets when they’re on the move and enters sleep mode when stationary to save power
- ‘Battery Low’ and ‘Battery Critical’ alerts
- Weatherproof and ultra-rugged IP68, IK07 housing
- LTE-M / NB-IoT Connectivity
This device is designed, developed, and manufactured by Digital Matter

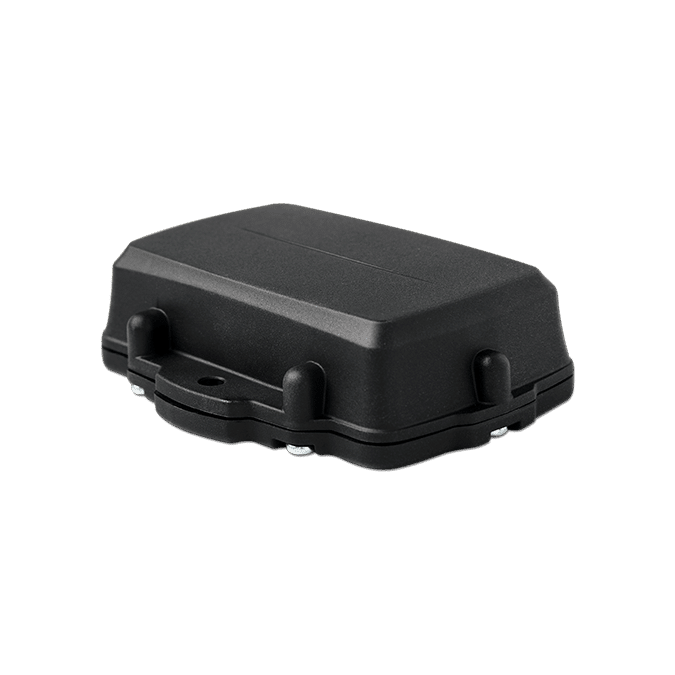

Oyster2_Rugged_Angle

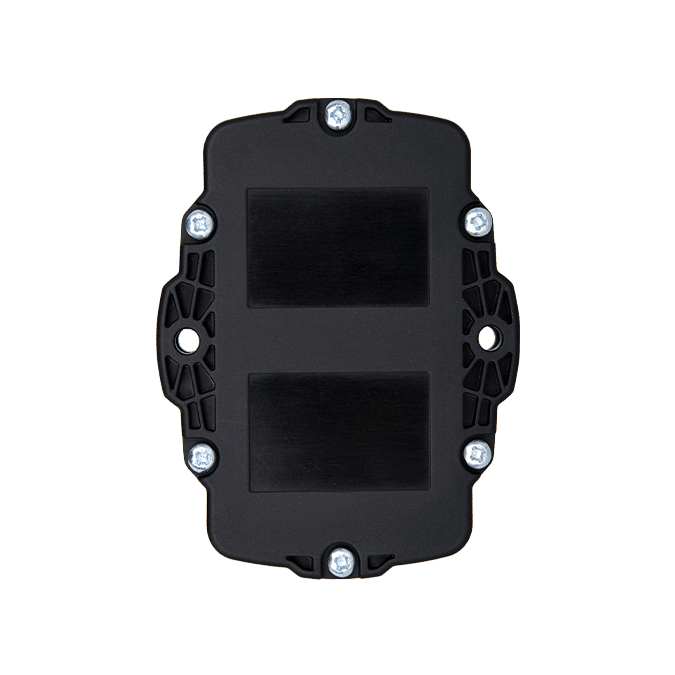

Oyster2_Rugged_Bottom

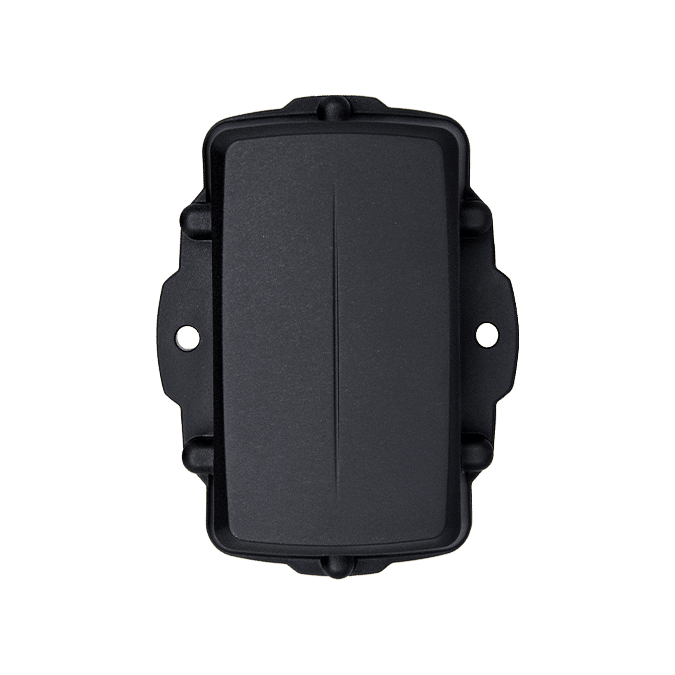

Oyster2_Rugged_Top
Recognized Excellence in Innovation
The Oyster Edge has been awarded the IoT Evolution Asset Tracking Award for 2022 in addition to receiving a 2022 Top 100 Supply Chain Project award.
Oyster Edge Features
Indoor / Outdoor
GNSS, Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management.
Bluetooth® Gateway
Bluetooth® 5.2 Gateway for affordable tagged asset management and sensor monitoring applications.
Cloud-Based Location Solving
Transfers the location processing workload from the device to the cloud for substantial power savings.
Rugged & Weatherproof
Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Oyster Edge can withstand impact, fine dust, and brief submersion.
Off-the-Shelf Batteries
Powered by user-replaceable, off-the-shelf 3 x AA Lithium batteries with ‘Battery Low’ and ‘Battery Critical’ alerts.
Wire-Free Installation
Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
LTE-M/NB-IoT Network Roaming
Supports automatic roaming between LTE-M and NB-IoT networks with minimal delay and marginal impact on battery life or performance (roaming SIM required).
Intelligent Power Management
Optimize power consumption with Intelligent Power Management tools including built-in balanced, low-power, and ultra-low power network registration strategies, accelerometer-based location scan throttling, and more.
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
Periodic or Movement-Based
Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Sleep Mode
Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.
Impact Detection
Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
Tip Detection & Rotation Counting
Axis angle reporting, tip detection and rotation counting
Asset Utilization
Capture run hours based on movement to understand and optimize asset utilization.
White-Label Ready
Non-branded housing for seamless deployments under your own brand.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Track More with Bluetooth® Low Energy
The Oyster Edge combines location tracking and Bluetooth low energy, enabling new and affordable asset management and sensor monitoring applications.
Integrate with hundreds of third-party Bluetooth tags and sensors to capture and report on critical asset data such as temperature, humidity, moisture, shock, vibration, door open/close, and many more.
Powerful Provisioning Tools,
Simple Integration
Device Management
Our advanced device management and provisioning platform offers unprecedented control over device settings to fit any tracking application.
Data Integration
Send data to any IoT or telematics platform with comprehensive documentation and a flexible and open payload format.
Cloud-Based Solver
Digital Matter’s Location Engine makes it easy to perform cloud-based position solving and integrate data into any system.
Technical Support
Expert technical assistance with device activation, installation, configuration, integration, troubleshooting, and a robust knowledge base.
Oyster Edge Resources
Explore our comprehensive knowledge base to configure, connect and install the Oyster Edge.
Getting Started Guide
Learn how to provision, connect and install the Oyster Edge for the best performance.
Datasheet
View and download the Oyster Edge datasheet.
Solution Overview
Learn more about Indoor/Outdoor asset tracking with Digital Matter Edge devices.
Supported Bluetooth Accessories
The Oyster Edge supports several industry-standard Bluetooth Low Energy formats out-of-the-box.
FAQs
Oyster Edge frequently asked questions.
The Digital Matter Difference
QUALITY matters
‘Good Enough’ is Not Enough For Your Critical Assets
Details matter. Our entire process is underpinned by a relentless attention to detail to consistently deliver solutions of the highest-possible quality and reliability.
POWER matters
The Power to Do More with ‘Deploy Once’ Battery Life
Through smarter design and better engineering we’re now able to achieve ‘deploy once’ battery life, significantly reducing operating costs and enabling deployments at scale.
FLEXIBILITY matters
Demand More From Your Devices
Easily configure your devices with full control over a rich set of device parameters. Send data to any end platform with multiple integration options.
SECURITY matters
Authenticated and Encrypted Everywhere
We implement comprehensive security protocols on our hardware and software to protect the integrity and confidentiality of your IoT data.
