Oyster Sigfox
Ultra-rugged and long-life battery-powered Sigfox GPS tracking device for asset tracking and management
- Powered by 3 x AA Batteries with up to 7 years battery life
- High-precision GPS/GLONASS tracking device tracks assets when they’re on the move and enters sleep mode when stationary to save power
- Weatherproof and ultra-rugged IP67 Housing
- Uses off-the-shelf Alkaline or Lithium (recommended) batteries

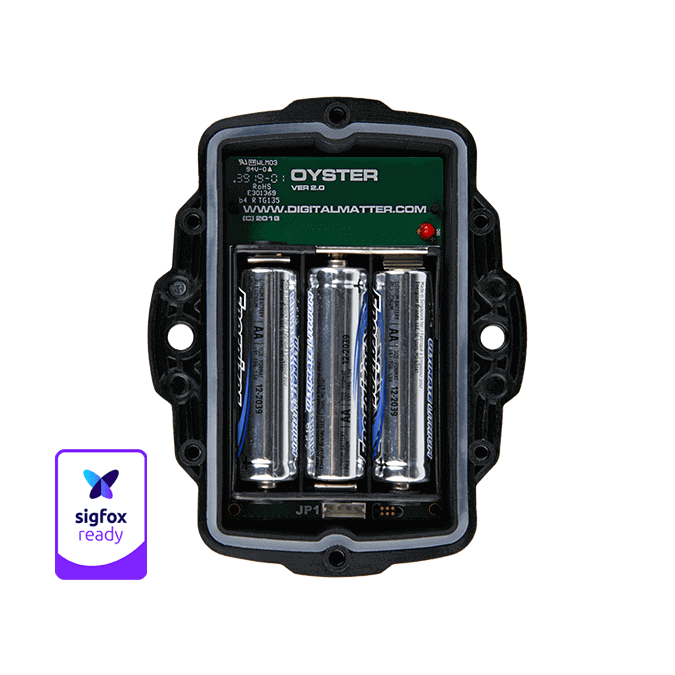

Oyster_Sigfox_Rugged_Open
Oyster_Sigfox_Rugged_Top
Oyster_Sigfox_Rugged_Bottom
Oyster_Sigfox_Rugged_Angle
Oyster Sigfox Features
High Precision GPS
GPS and GLONASS positioning systems are used simultaneously with a 72 channel high sensitivity receiver (-167dBm) for enhanced accuracy and faster fixes.
Global Connectivity
Highly sensitive radio receiver available in RCZ1, RCZ2, RCZ4 versions for global Sigfox connectivity.
Rugged & Weatherproof
IP67 rated housing ensures the device can withstand fine dust, high-pressure spray, submersion for 30 minutes in 1m of water, and extreme temperatures.
Off-the-Shelf Batteries
Powered by 3 x AA Off-the-Shelf, user-replaceable Alkaline or Lithium batteries.
Long Battery Life
Optimized for low-power operation with up to 7 years of battery life.
Accelerometer
3-Axis Accelerometer to detect movement.
Periodic or Movement-Based
Configure devices to send updates based on set time intervals (1x, 3x, 5x a day, etc.,) or when movement occurs.
Sleep Mode
Stationary devices enter sleep mode, switching the update rate to only once per day until movement occurs to conserve battery life and optimize data usage.
Geofencing
Create custom geofences and alerts if an asset enters or leaves specific locations.
Easy Install
Multiple installation options for covertly securing devices to assets with screws, bolts, cable ties, rivets, and more.
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
Global Support
Experienced support engineers for hardware, software, configuration, and integration guidance.
Track Anything, Anywhere
The Oyster Sigfox Tracker features up to 7 years of battery life and is designed to track and monitor any non-powered asset it can be secured to.
Oyster Sigfox Resources
Explore our comprehensive knowledge base to configure, connect, and install the Oyster Sigfox Tracker.
Datasheet
View and download the Oyster Sigfox datasheet.
Getting Started Guide
Learn how to assemble, connect and install the Oyster Sigfox.
Configuration App
Configuration app for Oyster Sigfox.
Battery Recommendations
Battery recommendations for the Oyster Sigfox.
Oyster Sigfox Integration
Uplink and downlink message requirements for integrating the Oyster Sigfox.
Technical Drawing
View ultra-rugged housing dimensions.
device management
Take Control of your Data
Configuration App
Manage device firmware updates and parameters via a USB configuration cable and app.
