SensorData LoRaWAN®
Rugged and feature-rich LoRaWAN® GPS and datalogger with customizable inputs/outputs, SD1-12, I²C Sensor Interfaces for asset tracking, agtech, and sensor monitoring applications
- High-precision GPS/GLONASS tracking device
- 1 x Analog Inputs, 2 x Digital Inputs
- SD1-12, I²C Sensor Interfaces
- Switched Power Out, Switched Sensor Power Interfaces
- Flexible Power Options – 4 x C Batteries or wired to permanent power
- Weatherproof and ultra-rugged IP67 Housing with compact and ergonomic design
- All 868, 915 & 923MHz LoRaWAN® regions supported
- *Manufactured for Volume Orders Only

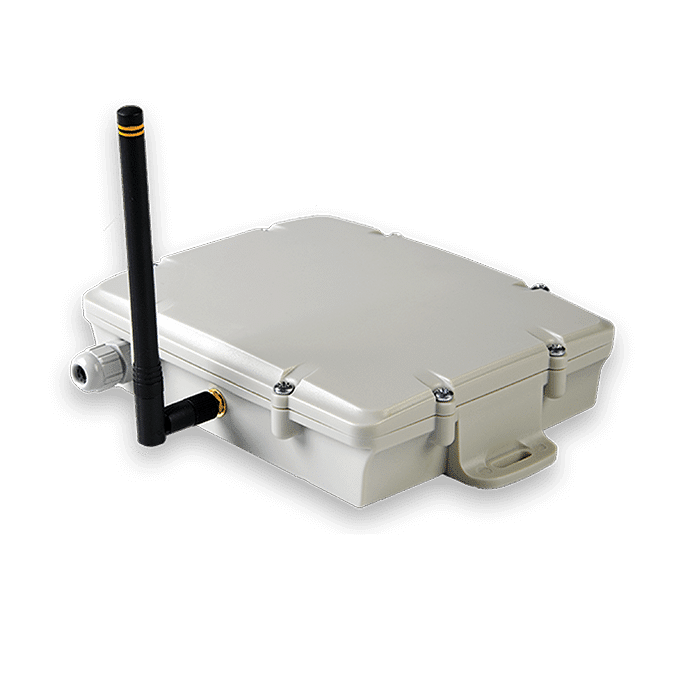

SensorData-Angle

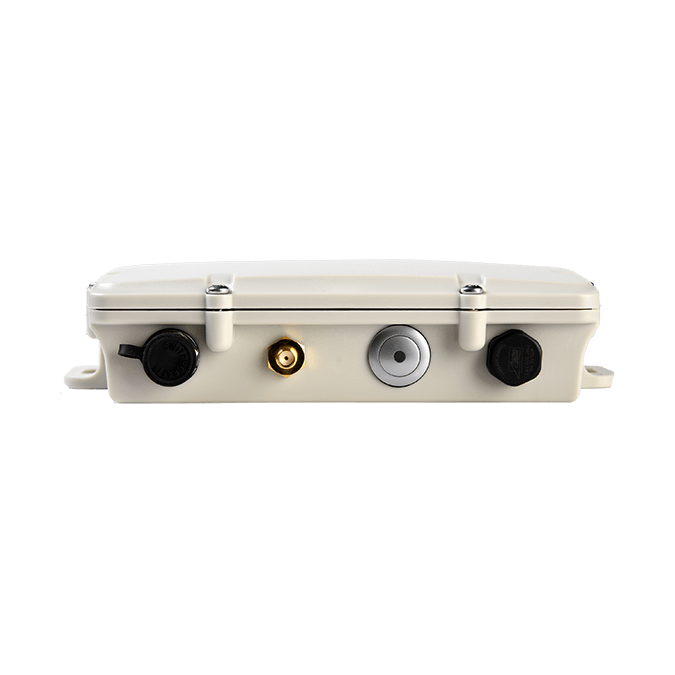

SensorData-Short-Side

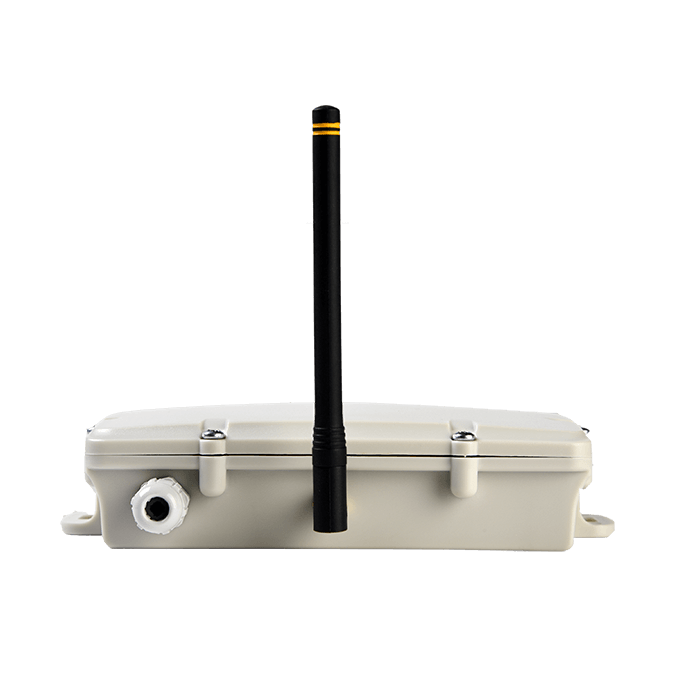

SensorData-Long-Side
SensorData-Top
SensorData LoRaWAN® Features
High Precision GPS
GPS and GLONASS positioning systems are used simultaneously with a 72 channel high sensitivity receiver (-165dBm) for enhanced accuracy and faster fixes.
Global Connectivity
Highly sensitive radio receiver is available in 868, 915 and 923MHz versions for global LoRaWAN® connectivity.
Rugged & Weatherproof
IP67 rated housing ensures the device can withstand fine dust, high-pressure spray, submersion for 30 minutes in 1m of water, and extreme temperatures.
Battery-Powered or Hardwired
The SensorData LoRaWAN® can be powered by 4 x C Batteries or hardwired to permanent power.
I²C and SDI-12 Interfaces
Connect a range of sensors such as temperature, humidity, moisture, depth, and more for environmental monitoring.
Customizable Inputs / Outputs
Interface with a range of devices and switches including door open/close, duress and panic buttons, lights, and more.
External Antenna
The external antenna allows for extended range and flexibility to chose other antenna options.
Easy Install
Multiple installation options for covertly securing devices to assets with screws, bolts, cable ties, rivets, and more.
Low Power, High Performance
We developed our own LoRaWAN® stack, optimized for low-power operations, low latency, and global adaptability.
- Robust – Thoroughly tested and proven to work reliably in long term deployments.
- Flexible – Advanced settings are configurable for niche use cases and almost all parameters are configurable over the air.
- Agile – Owning our own stack means we are well-positioned to adapt quickly to updates to the LoRaWAN® standard.
LoRaWAN® for Agriculture
Ultra-rugged, the SensorData LoRaWAN® is designed for low-power sensor monitoring applications on public or private LoRaWAN® networks.
Sensor Monitoring
Connect a range of sensors such as temperature, humidity, moisture, depth, and more for monitoring sensitive environments or assets.
Soil Moisture Monitoring
Capture soil moisture data to enhance crop conditions, increasing efficiency and crop yields.
Tank Level Monitoring
Monitor water tank levels remotely and configure alerts when specific levels are reached.
Pulse Counting
Remotely monitor events such as water, electricity, or gas consumption, door open/close counts, and more with wireless pulse counting.
SensorData LoRaWAN® Resources
Explore our comprehensive knowledge base to configure and connect the SensorData LoRaWAN®.
Datasheet
View and download the SensorData LoRaWAN® datasheet.
Configuration and Usage Guide
The SensorData LoRaWAN® provides a number of configurable parameters to fit specific applications.
Configuration App
Configuration app for SensorData LoRaWAN®.
Battery Recommendations
Battery Recommendations for the SensorData LoRaWAN®.
Supported Sensors and Inputs
Supported sensors and inputs for the SensorData LoRaWAN®.
Integrating the SensorData LoRaWAN®
Payload details for integrating the SensorData LoRaWAN® into third-party software platforms.
Payload Decoding Examples
How to decode data from the SensorData LoRaWAN®.
Scheduled Uplinks
Scheduling uplink transmissions and items on the SensorData LoRaWAN®.
device management
Take Control of your Data
Configuration App
Manage device firmware updates and parameters via a USB configuration cable and app.
Integration
Easy integration with comprehensive documentation and a flexible and open payload format.
