G120
GPS tracking device and Bluetooth® Gateway with optional Iridium Satellite for out-of-coverage tracking with inputs/outputs, RS-232 Interface, and remote immobilization for fleet management, driver ID, driver safety and behavior monitoring, remote worker safety, theft recovery, and more
- High-precision GPS/GLONASS tracking device wired to vehicles or equipment
- Internal Backup Battery in case of loss of power or tampering
- 1 x Analog Input, 6 x Digital Inputs, 2 x Switched Ground Digital Outputs, 1 x Ignition Digital Input, Switched Power Out
- RS-232 Interface to connect optional Iridium Edge® Module or interface with controllers and sensors
- Configure iButton®, RFID readers and Wiegand Interface for Driver ID
- Accident and rollover detection, speeding, harsh braking, and more
- Built-in Buzzer for in-cab alerts
This device is designed, developed, and manufactured by Digital Matter
G120-Angle
G120 PCB
G120 Top
G120 Long
G120-Short-Side
G120 Features
High Precision
GPS and GLONASS positioning systems are used simultaneously with a 72 channel high sensitivity receiver (-167dBm) for enhanced accuracy and faster fixes.
Real-Time Tracking
The G120 remains continuously connected while on the move for real-time asset tracking.
Bluetooth® Gateway
Bluetooth® 5.0 Gateway for affordable tagged asset management and sensor monitoring applications.
Out-of-Coverage Tracking
Fit the G120 with an optional Iridium Edge® Module to track assets in remote areas outside of cellular coverage.
Inputs / Outputs
Interface with a range of devices and switches to fit any application including seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, pulse counting, and more.
Remote Immobilization
Digital outputs can be connected to a relay to enable remote immobilization of vehicles in the case of theft, abuse, or unauthorized usage.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate live-tracking at 30 second intervals for asset retrieval.
Driver ID Options
Configure iButton®, RFID Readers, or Wiegand for Driver ID, Access Control, and Logbooking.
Driver Safety & Behavior
Monitor speeding, harsh acceleration, braking, cornering, idling, and more to improve safety and prevent unnecessary wear on vehicles.
Accident & Rollover Detection
Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicles.
White-Label Ready
Non-branded housing for seamless deployments under your own brand.
Run Hour Monitoring
Calculate run hours and distance travelled (odometer) to understand and optimize asset utilization.
Advanced Fleet Management Solutions
Fleet Management
Capture and analyze critical data points to improve and optimize fleet management strategies
Bluetooth® Gateway
Monitor vital vehicle components, reduce fuel consumption and theft, and more with wireless Bluetooth® sensors.
Driver ID
Configure iButton®, RFID Readers, or Wiegand for driver ID. Existing employee access badges or ID cards that support Wiegand may also be used.
Driver Safety & Behavior
Promote safe driving and meet compliance with real-time speeding, harsh driving, accident and duress alerts, and more.
Out-of-Coverage Tracking
Maintain real-time tracking even when assets roam out of cellular coverage with an optional Iridium Edge® Module.
Remote Worker Safety
Interface a variety of duress pendants to enable man-down alerts for lone and remote worker safety monitoring, even when out of cellular coverage.
Theft Recovery
Configure timely movement alerts and quickly switch to Recovery Mode to assist in theft recovery.

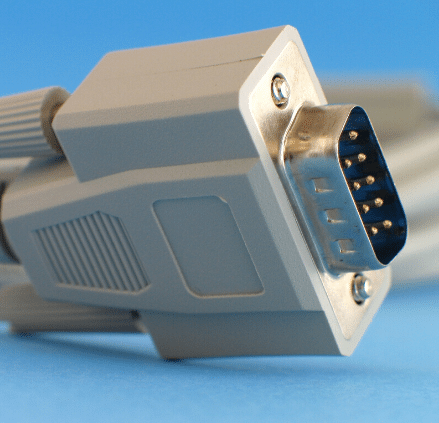

RS-232
The G120 is capable of acting as an intermediate between a server and an RS232 serial connected device, passing and logging data received.
Datasheet
View and download the G120 datasheet.
Getting Started Guide
Learn how to assemble and connect the G120.
Installation Guide
Learn how to install and test the G120.
Iridium Set Up and Operation
Learn how the Iridium connection operates on the G120.
Getting Started with Bluetooth®
Learn how to configure Bluetooth® functionalities on the G120.
Bluetooth® for Fleet Management
Applying Bluetooth® technology in fleet management requires a gateway device and sensors.
Wiegand Driver ID Readers and Keypads
Learn more about Wiegand for Driver ID.
RS-232 Passthrough Mode
The G120 is capable of acting as an intermediate between a server and an RS-232 serial connected device.
Related Devices
Bolt2
Plug-and-play OBDII GPS vehicle tracking device with backup battery
- LTE-M (Cat-M1) / NB-IoT Connectivity
- Real-time vehicle tracking with 'unplugged/power loss' alerts
- Speeding, harsh braking and cornering, accident and rollover detection
Dart3
Robust GPS vehicle tracking device with inputs/outputs, remote immobilization for fleet management, driver ID, driver safety and behavior monitoring, theft recovery, and more
- 2G or LTE-M (Cat-M1) / NB-IoT Connectivity
- 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analog Input, 1 x Switched Ground Digital Output, Switched Power Out
- Accident and rollover detection, speeding, harsh braking, and more
G70
Ultra-rugged and robust wired GPS tracking device with I/O's, immobilization, driver ID, driver behavior
- 2G or LTE-M (Cat-M1) / NB-IoT Connectivity
- 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analog Input, 1 x Switched Ground Digital Output
- Ultra-rugged and weatherproof IP68, IK08 Housing
Remora3
Ultra-rugged battery-powered GPS asset tracker and Bluetooth Gateway with tamper detect
- LTE-M (Cat-M1) / NB-IoT Connectivity
- Deploy-once battery life with up to 10+ years movement-based tracking, 2 years at most aggressive (second-by-second) tracking performance
- Bluetooth® 5.2 Gateway
- Ultra-rugged IP68, IK07 Housing with Magnetic Tamper Detect
Remora3 Global
Long-life and ultra-rugged battery-powered GPS and Bluetooth® Gateway for global asset tracking and condition monitoring applications
- 4G Cat 1bis and 2G Connectivity for Global Roaming
- Bluetooth® 5.2 Gateway
- Deploy-Once Battery Life with up to 10+ years
- Ultra-Rugged and Weatherproof with Magnetic Tamper Detection
