G150 Global
Robust real-time GPS tracking device with Bluetooth® Gateway, inputs/outputs, driver ID and behavior monitoring, remote immobilization, and global connectivity, offering comprehensive vehicle and equipment tracking in rugged conditions with optional Iridium satellite coverage.
- High-precision GPS tracking device and Bluetooth Gateway® for vehicles and equipment
- 4 x Digital Inputs, 1 x Analog Input, 2 x Switched Ground Digital Outputs, 1 x Ignition Digital Input, Switched Power Out, RS232
- Driver ID, Driver Behavior, and Remote Immobilization Support
- Internal 3500mAh rechargeable LiPo backup battery in case of loss of power or tampering
- Waterproof and rugged IP68 housing can withstand impact, fine dust, and brief submersion
- Connect almost anywhere in the world with a cellular network with 4G Cat 1bis and 2G fallback
- Optional Iridium Satellite
This device is designed, developed, and manufactured by Digital Matter

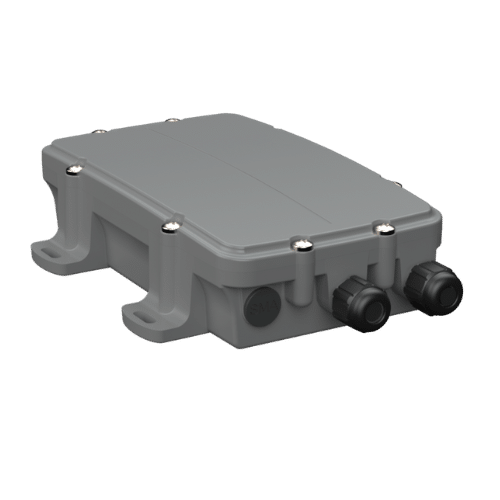

G150 Angle Digital Matter

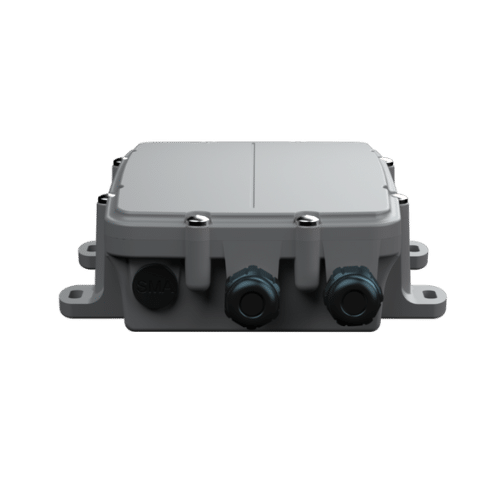

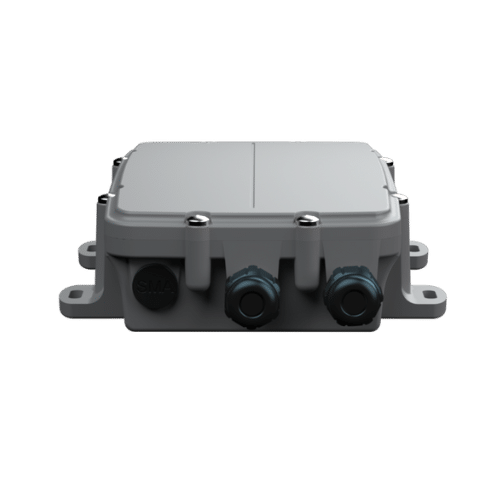

G150 Short Digital Matter

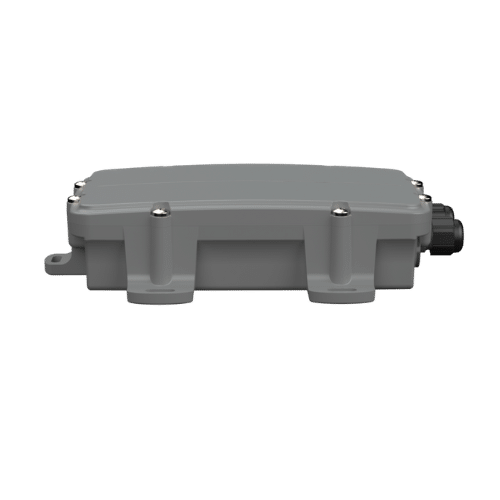

G150 Side Digital Matter

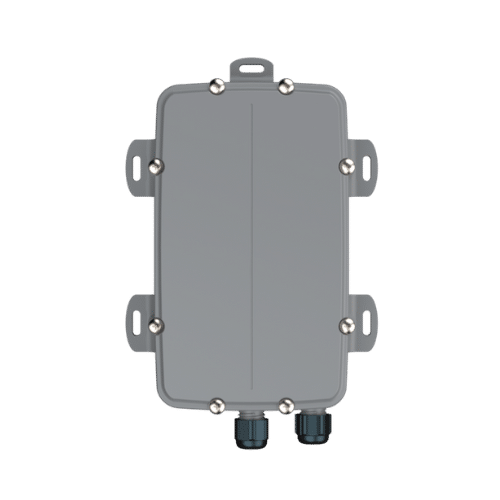

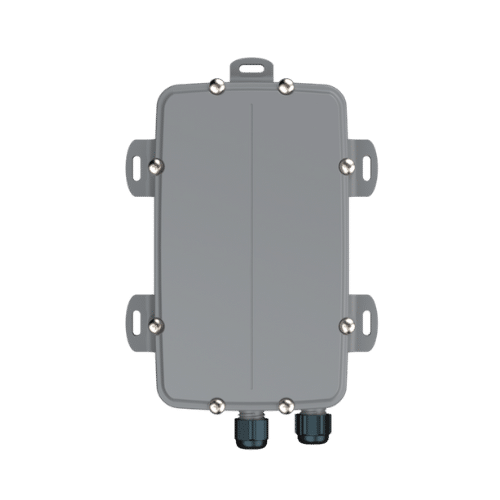

G150 Top Digital Matter
G150 Global Features
Real-Time Tracking
The G150 remains continuously connected to power while on the move for real-time asset tracking.
Bluetooth Gateway
Bluetooth® 5.2 Gateway for affordable tagged asset management and sensor monitoring applications.
Inputs/Outputs
Comprehensive I/O options include Digital, Analog, Switched Ground, Switched Power Out, Ignition, and RS232.
Remote Immobilization
Digital outputs can be connected to a relay to enable remote immobilization of vehicles in the case of theft, abuse, or unauthorized usage.
Onboard Geofencing
Geofences can also be downloaded directly to the device for enhanced location-based actions and alerts.
Driver ID Options
Configure Bluetooth®, iButton®, RFID Readers, or Wiegand for Driver ID, Access Control, and Logbooking.
Driver Safety & Behavior
Monitor speeding, harsh acceleration, braking, cornering, idling, and more to improve safety and prevent unnecessary wear on vehicles.
Accident & Rollover Detection
Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicles.
Rugged & Weatherproof
Ultra-rugged and waterproof IP68 and IK08-rated housing with GORE® vent ensures the device can withstand impact, fine dust, and brief submersion.
Out-of-Coverage Tracking
Fit the G150 Global with an optional Iridium Edge® Module to track assets in remote areas outside of cellular coverage.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate live-tracking at 30-second intervals for asset retrieval.
G150 Global Resources
Explore our comprehensive knowledge base to configure, connect and install the G150 Global.
Datasheet
View and download the G150 Global datasheet.
Getting Started Guide
Learn how to assemble and connect the G150 Global.
Harness Definition
The G150 has two harness headers, which cover 10 pins each.
Iridium Set Up and Operation
Learn how the Iridium connection operates on the G150 Global.
