Yabby Edge Cellular

LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker for indoor/outdoor asset tracking.
  • Powered by 3 x AAA user-replaceable batteries with 10+ years battery life
  • Location via GNSS, Wi-Fi Access Point, and Cell Tower scanning data
  • Intelligent power management with cloud-based location solving and low battery alerts
Indoor/Outdoor

Indoor / Outdoor

The Digital Matter Yabby Edge Cellular utilizes GNSS, Wi-Fi AP MAC Address Scanning, and Cell Tower location to provide seamless indoor/outdoor asset management. It is engineered as an ultra-compact, battery-powered GPS tracker specifically designed for tracking tools, pallets, and smaller assets across warehouses and field sites.

Cloud-Based Location Solving

Cloud-Based Location Solving

As an advanced LTE-M / NB-IoT asset tracker, the Yabby Edge utilizes cloud-based location solving. By transferring the location processing workload from the device to the cloud, it achieves substantial power savings compared to traditional GPS tracking devices.

Rugged & Weatherproof

Rugged & Weatherproof

Built for long-term supply chain and logistics tracking, the ultra-rugged and waterproof IP68 and IK06-rated housing ensures the Yabby Edge can withstand impact, fine dust, and brief submersion in the toughest industrial environments.

Off-the-Shelf Batteries

Off-the-Shelf Batteries

Powered by user-replaceable, off-the-shelf 3 x AAA Lithium batteries with ‘Battery Low’ and ‘Battery Critical’ alerts.


 Wire-Free Installation

Wire-Free Installation

Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.

Flexible Configuration

Flexible Configuration

Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.

Periodic or Movement-Based

Periodic or Movement-Based

Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.


Impact Detection

Impact Detection

Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.


Tip Detection & Rotation Counting

Tip Detection & Rotation Counting

Axis angle reporting, tip detection and rotation counting (planned).

 Asset Utilization

Asset Utilization

Capture run hours based on movement to understand and optimize asset utilization.

Preventative Maintenance

Preventative Maintenance

Set reminders based on distance traveled and run hours to reduce maintenance and repair costs.

Theft Recovery

Theft Recovery

Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.

  • Cellular Module
  • Nordic nRF9160 operates on all major global LTE-M and NB-IoT bands.
    Supported LTE bands:
    LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66
    NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66

  • SIM Size and Access
  •  Internal Nano 4FF SIM

  • Chipset
  • Semtech LR1110

  • Environment
  • Indoor/Outdoor

  • Constellations
  • Concurrent GPS, BeiDou

  • GNSS Assistance
  • GNSS almanac and ephemeris data for greater sensitivity and position accuracy.

  • Low Noise Amplifier
  • GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.

  • Wi-Fi Location Scanning
  • Indoor asset location using Wi-Fi access point scanning.

  • Cell Tower Location
  • Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal.

  • Cloud-Based Solver
  • Asset location is resolved using Digital Matter’s Location Engine.

  • Location Accuracy*
  • ~5m-80m with GNSS scanning in open areas
    ~10m-100m with Wi-Fi in urban areas
    ~250m-1km Cell Tower Geolocation - dependent on number of nearby towers


    * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.

  • User-Replaceable Batteries
  • 3 x AAA. Batteries not included.
    Widely available at most hardware or retail locations.

  • Supported Battery Types
  • Lithium
    Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.

  • Battery Life Estimates*
  • Once Daily location updates – 10 years
    Movement-Based location updates** – 3 years
    Hourly location updates – 2 years

  • Sleep Current
  • <10uA
    Average current in lowest power state.


    * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com.

    ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.

  • Dimensions
  • Standard Housing - 84 x 63 x 24 mm (3.31 x 2.48 x 0.94 in)

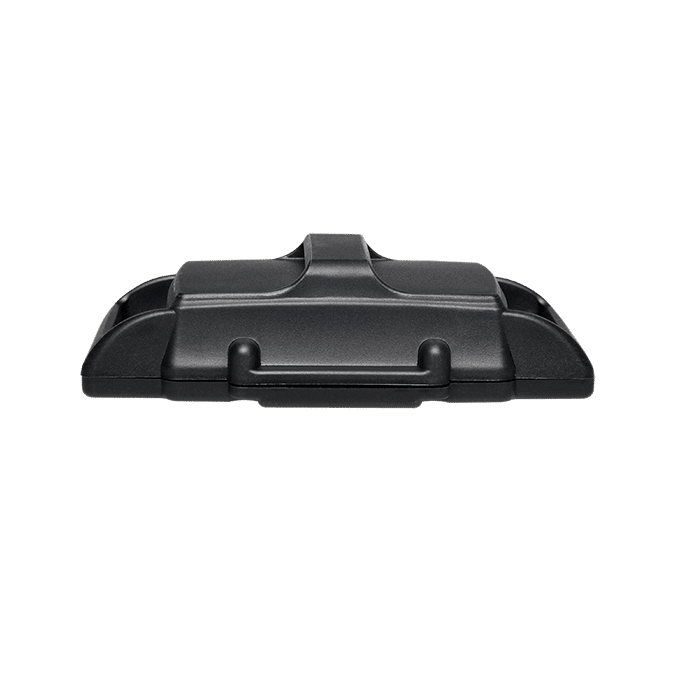

    Livestock Collar Housing - 109 x 60 x 30 mm (4.29 x 2.36 x 1.18 in)

  • Device Weight
  • Standard Housing - 85g with Energizer Ultimate Lithium batteries.

  • Housing
  • Non-branded nylon glass housing is suitable for white labeling.

  • IP/IK Rating
  • Ultra-rugged and waterproof IP68 and IK06-rated housing ensures the device can withstand impact, fine dust, and brief submersion.

  • Installation
  • Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided. Collar housing available for securing device to livestock.

  • Temperature Range
  • Operating: -30°C to +60°C
    Recommended Storage: 10°C to 30°C, Humidity 30%.
    Store in a cool, dry place.

  • Cellular Antenna
  • Internal

  • GPS Antenna
  • Internal

  • Wi-Fi Antenna
  • Internal

  • 3-Axis Accelerometer
  • 3-Axis accelerometer to detect movement, high-g events, and more.

  • Diagnostic LED
  • Diagnostic LED indicates operation status.

  • Speed and Heading
  • Scanning technology used on this device does not return speed or heading.

  • Onboard Temperature
  • Provides ambient temperature but may not be suitable for precise temperature logging purposes.

  • Adaptive Tracking
  • Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.

  • Battery Life Monitoring
  • ‘Battery Low’ and ‘Battery Critical’ alert levels.

  • Geofence Alerts
  • The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.

  • Impact Detection
  • Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.

  • Rotation Counting
  • Keeps a count of the number of rotations of the device.

  • Run Hour Monitoring
  • Capture run hours based on movement to understand and optimize asset utilization.

  • Sleep Mode
  • Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.

  • Theft Recovery
  • Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.

  • Tip Detection
  • Define a range of angles that constitutes a ‘tipped’ state and configure alerts.

  • Flexible Configuration
  • Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.

  • Configuration App
  • Configurable with DM-Link provisioning tool.

  • Third-Party Integration
  • HTTPS Webhook

  • API
  • Command and configure the device via rich API functionality.

  • Data Security
  • Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

Please view our knowledge base for regulatory and network certifications.

Product Variants

Yabby3

LTE-M (Cat-M1) / NB-IoT

Compact and rugged battery-powered GPS tracker for reliable outdoor asset tracking.
Yabby3 LoRaWAN®

LoRaWAN®

Compact and rugged battery-powered GPS tracker for outdoor asset tracking on LoRaWAN networks.
Yabby Edge Cellular

LTE-M (Cat-M1) / NB-IoT

Compact and rugged battery-powered GPS tracker for indoor/outdoor asset tracking.
Yabby Edge LoRaWAN®

LoRaWAN®

Compact and rugged battery-powered GPS tracker for indoor/outdoor asset tracking on LoRaWAN networks.

Take Control of Your Deployment

From first install to scaled rollout, Digital Matter gives you the tools to manage, integrate, and support your devices with confidence. Ensure every device is connected, configured, and delivering value across every stage of deployment.

Device Management and Configuration

Easily monitor, configure, and update your devices from anywhere in the world. Control reporting frequency, movement-based events, and more to suit your application. Track battery life and optimize performance using a full suite of parameters designed to give you flexibility and control.

More on Device Management

API and Integration

Send data where you need it and how you need it. Connect Digital Matter devices to your existing systems with well-documented APIs, making integration into your existing systems straightforward.



More on Integration

End to End Security

Protect data integrity with security built into every layer. Devices use AES-256 encryption, key management, and secure authentication. Regular testing and updates help maintain compliance and keep systems secure.

More on Security

Technical Support

Support your team with the technical information they need to move quickly and confidently. Access detailed getting started guides, configuration resources, battery recommendations, and more.

Explore our Knowledge Base

See How Our Partners Build Sensor Monitoring Solutions

Indicium Dynamics and Digital Matter Bring Real-Time Trade Waste Monitoring to Water Utilities

Challenge Solution Outcomes Trade waste from industrial and commercial activities often contains hazardous substances that, if managed incorrectly, can harm...

Indicium Dynamics and Digital Matter Bring Real-Time Trade Waste Monitoring to Water Utilities

See How Our Partners Build Sensor Monitoring Solutions

How Digital Matter IoT Devices Help Monitor Wildlife in AWC Sanctuaries

Challenge Solution Outcomes Feral cats and goats devastate Australia’s native wildlife and habitats, and manually monitoring their locations across vast,...

How Digital Matter IoT Devices Help Monitor Wildlife in AWC Sanctuaries

See How Our Partners Build Sensor Monitoring Solutions

The Future of Beekeeping: Data-Driven Insights from the iBuzz2 Project

Using the asset-tracking and remote monitoring capabilities of the Hawk Pro, a team of undergraduate researchers at the University of Southampton developed the iBuzz2: a...

The Future of Beekeeping: Data-Driven Insights from the iBuzz2 Project

See How Our Partners Build Sensor Monitoring Solutions

Promoting Animal Welfare with Wildlife Trap Monitoring

Explore how researchers in Western Australia's Department of Biodiversity, Conservation, and Attractions are using the Hawk to promote animal welfare.

Promoting Animal Welfare with Wildlife Trap Monitoring

See How Our Partners Build Sensor Monitoring Solutions

Groundwater Mapping and Monitoring with WaterMappers

Learn how Watermappers is utilizing the Hawk IoT Data Logger for hydrological cycle modelling and groundwater mapping.

Groundwater Mapping and Monitoring with WaterMappers

Compare Yabby Edge Cellular Range

Device Model Network Connectivity Key Features / Tech Best For
Yabby Edge Cellular LTE-M / NB-IoT Wi-Fi Indoor Positioning, Cloud-solving Assets moving between indoor warehouses and outdoor environments.
Yabby3 GPS LTE-M / NB-IoT High-precision GNSS, Long battery life Standard outdoor tracking for tools, livestock, and small equipment.
Yabby Edge LoRaWAN® LoRaWAN® Wi-Fi Indoor Positioning via LoRa Indoor/outdoor tracking on private or public LoRaWAN networks.
Yabby3 LoRaWAN® LoRaWAN® High-precision GNSS via LoRa Remote agriculture, mining, and outdoor tracking via LoRa.

The Digital Matter Difference

Microchip_White

QUALITY matters

‘Good Enough’ is Not Enough For Your Critical Assets

Details matter. Our entire process is underpinned by a relentless attention to detail to consistently deliver solutions of the highest-possible quality and reliability.

Microchip_White

POWER matters

The Power to Do More with ‘Deploy Once’ Battery Life

Through smarter design and better engineering we’re now able to achieve ‘deploy once’ battery life, significantly reducing operating costs and enabling deployments at scale.

Microchip_White

FLEXIBILITY matters

Demand More From Your Devices


Easily configure your devices with full control over a rich set of device parameters. Send data to any end platform with multiple integration options.

Microchip_White

SECURITY matters

Authenticated and Encrypted Everywhere

We implement comprehensive security protocols on our hardware and software to protect the integrity and confidentiality of your IoT data.

Our ISO/IEC 27001:2022 certification confirms our dedication to safeguarding sensitive information.

Yabby Edge Cellular FAQs



How much does the Yabby Edge Cellular cost, and how do I buy it?

Pricing for the Yabby Edge Cellular depends on your order quantity, location, connectivity requirements, and the scale of your asset tracking deployment.

To get an accurate quote and explore purchasing options, contact Digital Matter to discuss your requirements.



Which networks does the Yabby Edge Cellular use, and where will it work?

The Yabby Edge Cellular uses a Nordic nRF9160 cellular module, supporting LTE-M (Cat-M1) and NB-IoT (Cat-NB1/NB2) connectivity across major global frequency bands.

Supported LTE-M bands include B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, and B66. Supported NB-IoT bands include B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, and B66.

The device also combines GNSS, Wi-Fi Access Point scanning, and Cell Tower Location to provide indoor and outdoor asset visibility, with location data processed through Digital Matter's cloud-based Location Engine.

While the Yabby Edge Cellular supports a broad range of global frequency bands, network coverage and availability vary by country and carrier. To confirm compatibility in your deployment region, contact Digital Matter for guidance.

How is the Yabby Edge Cellular configured and updated?

The Yabby Edge Cellular offers flexible configuration options, allowing you to customize location update intervals, movement detection, accelerometer settings, and reporting behaviour to suit your application.

Its adaptive tracking functionality adjusts reporting frequency based on asset movement, providing more frequent updates when assets are moving while conserving battery power during stationary periods.

Devices can be configured using Digital Matter's DM-Link provisioning tool. The cloud-based Device Manager also enables remote monitoring, configuration, troubleshooting, firmware updates, and device restarts, making it easier to manage large deployments without accessing individual devices.

How long does the Yabby Edge Cellular battery last?

The Yabby Edge Cellular can achieve up to 10 years* of battery life when configured for one location update per day. Powered by three user-replaceable AAA lithium batteries, it's designed to provide long-term indoor and outdoor asset tracking with minimal maintenance.

For applications requiring more frequent reporting, the estimated battery life is two years with hourly location updates or three years with movement-based tracking. The movement-based estimate assumes two hours of movement per day, five days per week, with location updates every three minutes and uploads every 30 minutes.

*Actual battery life depends on reporting frequency, network coverage, movement patterns, environmental conditions, and battery selection. Increasing the reporting frequency or operating in areas with poor connectivity can reduce battery life.

For a more accurate estimate based on your deployment, explore the battery life calculators available through Digital Matter Support or contact Digital Matter for guidance.

Can the Yabby Edge Cellular integrate with my existing telematics platform?

Yes, the Yabby Edge Cellular supports third-party integration through HTTPS Webhook, allowing tracking data to be securely delivered to compatible telematics and asset management platforms. Digital Matter also provides API functionality for remotely configuring devices and sending commands.

If you're already using a telematics platform, we recommend checking its integration requirements to confirm compatibility before deployment.

For more information, explore Digital Matter's device integration solutions or contact Digital Matter to discuss your existing platform and integration requirements.

How is the Yabby Edge Cellular installed or mounted?

The Yabby Edge Cellular features a compact, lightweight design that supports discreet installation on a wide range of assets. It can be securely mounted using screws, bolts, cable ties, or rivets, with stainless steel screws provided.

Its IP68 waterproof and IK06 impact-resistant housing makes it suitable for demanding indoor and outdoor environments, including equipment, containers, tools, and other mobile assets. An optional livestock collar housing is also available for animal tracking applications.

The most suitable mounting position depends on the asset, operating environment, and positioning requirements. Choose a secure location that protects the device from damage while allowing reliable GNSS, Wi-Fi, and cellular signal reception.

For step-by-step mounting instructions and supported accessories, refer to the Yabby Edge Cellular installation documentation or contact Digital Matter for assistance.
