DM Dot Sensor

Bluetooth®
Ultra-rugged Bluetooth Low Energy sensor beacon with impact, temperature, humidity, and magnet detection for track and trace applications.
  • Low-power Bluetooth beacon with integrated sensors for impact, temperature, humidity, and magnet detection (hall effect)
  • Seamless integration with Digital Matter Bluetooth Gateway devices
  • Powered by 580mAh coin cell battery with low battery alerts
  • Easy and secure configuration via companion mobile app (Android & iOS)
Dot-Sensor-angle-web

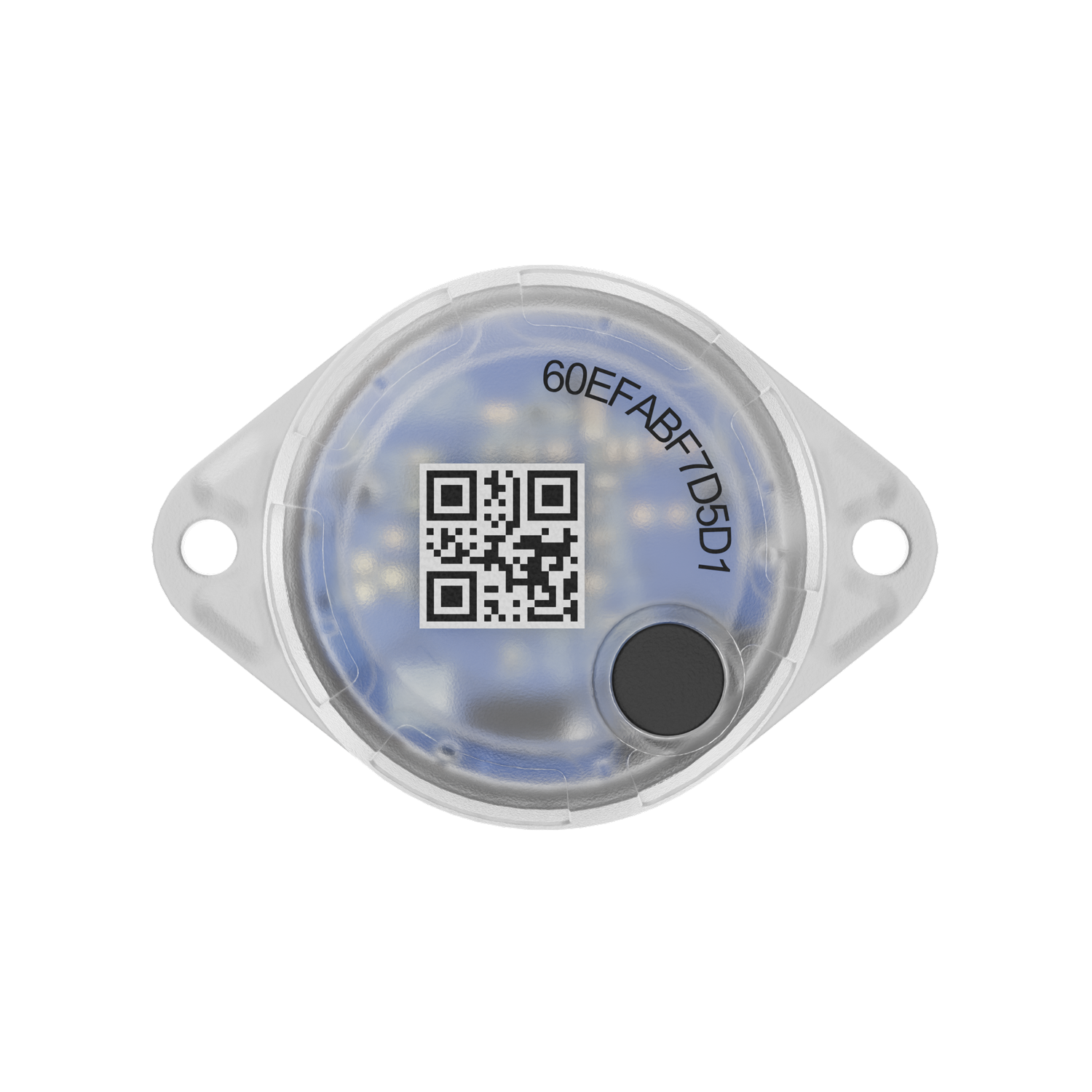

Dot-Sensor-top-web
Bluetooth

Bluetooth Low Energy 6.0

Quickly detected by Bluetooth gateways.

Sensors

Onboard Sensors

Accelerometer, magnet detection, temperature, and humidity sensors for monitoring movement, door open/close, and environmental conditions.

Security

Secure App Configuration

Configure all settings using Digital Matter's Provisioning App. Prevents unauthorized access and simplifies setup.

Battery

‘Deploy Once’ Battery Life

Operates for years on a single CR2450 battery with low battery alerts.

Rugged

Ultra-Rugged

IP68 and IK07-rated housing resists dust, water, and impact for reliable use in harsh environments.

Thumbs-Up-Icon-Black-480x480

Wire-Free Installation

Multiple installation options for securing device to asset or concealing within.



Product Information

Datasheet Open New Window Icon

Resources

Getting Started Guide Open New Window Icon DM BLE Provisioning Tool User Guide Open New Window Icon Download Mobile App - Google Play Store Open New Window Icon Download Mobile App - Apple Store Open New Window Icon
  • Bluetooth Beacon

  • Ultra-low-power chip with Bluetooth Low Energy 6.0

  • Transmission Power

  • 7 dBm TX Power (max)

  • Onboard Temperature & Humidity

  • The device reports temperature and humidity which provides an indication of ambient temperature.

  • Onboard Magnet Detection (Hall Effect)

  • Senses when a magnet is close to the device. Attach a magnet to a door or object to detect movement or changes in position. Ideal for monitoring usage, tampering, or security events.

  • High-Bright LED

  • High-bright red LED for visual alerting on breach of sensor thresholds.

  • 3-Axis Accelerometer

  • 3-Axis accelerometer to detect movement, high-g events, and more.

  • Non-Replaceable Batteries

  • 1 x CR2450 3V, 580mAh

    Battery pre-installed

  • Battery Type

  • Lithium (LiMnO2)

  • Battery Life Estimates*

  •  Coming soon!

  • Sleep Current

  • <10uA
    Average current in lowest power state.

  • Dimensions

  • 59 x 42 x 13 mm (2.32 x 1.66 x 0.51″)

  • Device Weight

  • 20 g

  • Housing

  • Translucent enclosure allows visibility of the diagnostic LED. Enables visual alerting, such as flashing when temperature limits are exceeded.

  • GORE® Vent

  • GORE® Vent to ensure optimal ambient readings.

  • IP/IK Rating

  • Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.

  • Installation

  • Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.

  • Temperature Range

  • Operating: -30°C to +60°C
    Recommended Storage: 10°C to 30°C, Humidity 30%.
    Store in a cool, dry place.

  • Bluetooth Antenna

  • Internal

  • Adaptive Monitoring

  • Configure parameters to enable/disable sensors and balance efficiency and sensor refresh rate.

  • Battery Life Monitoring

  • ‘Battery Low’ alert levels.

  • Impact Detection

  • Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.

  • Sleep Mode

  • Device sleeps in between beaconing, waking occasionally to refresh sensor data. Support for sensors to remain active for alerts, allowing host SoC to sleep at a lower power.

  • Configuration App

  • Configurable with Digital Matter’s provisioning app.

  • Digital Matter Gateways

  • Effortless integration with Digital Matter Gateways.

  • Third-Party Integration

  • Sensor data can be obtained by third-party hardware via BLE Advertising Payload.

  • Data Security

  • Military-grade AES-256 Encryption from device to Companion App to protect the device from being reconfigured/updated by unauthorized users.

Please view our knowledge base for regulatory and network certifications.
