Device Overview / Device Finder / Support

DM Dot Tag

Bluetooth®
The DM DOT Tag is an ultra-rugged Bluetooth Low Energy beacon designed for long-life, wire-free track and trace applications.
  • Low-power Bluetooth beacon with variable reporting modes for ‘track and trace’.
  • Seamless integration with Digital Matter Bluetooth Gateway devices.
  • Powered by pre-installed 580mAh coin cell battery with low battery alerts.
  • Easy and secure configuration via companion mobile app (Android & iOS).
Dot-Tag-angle-web

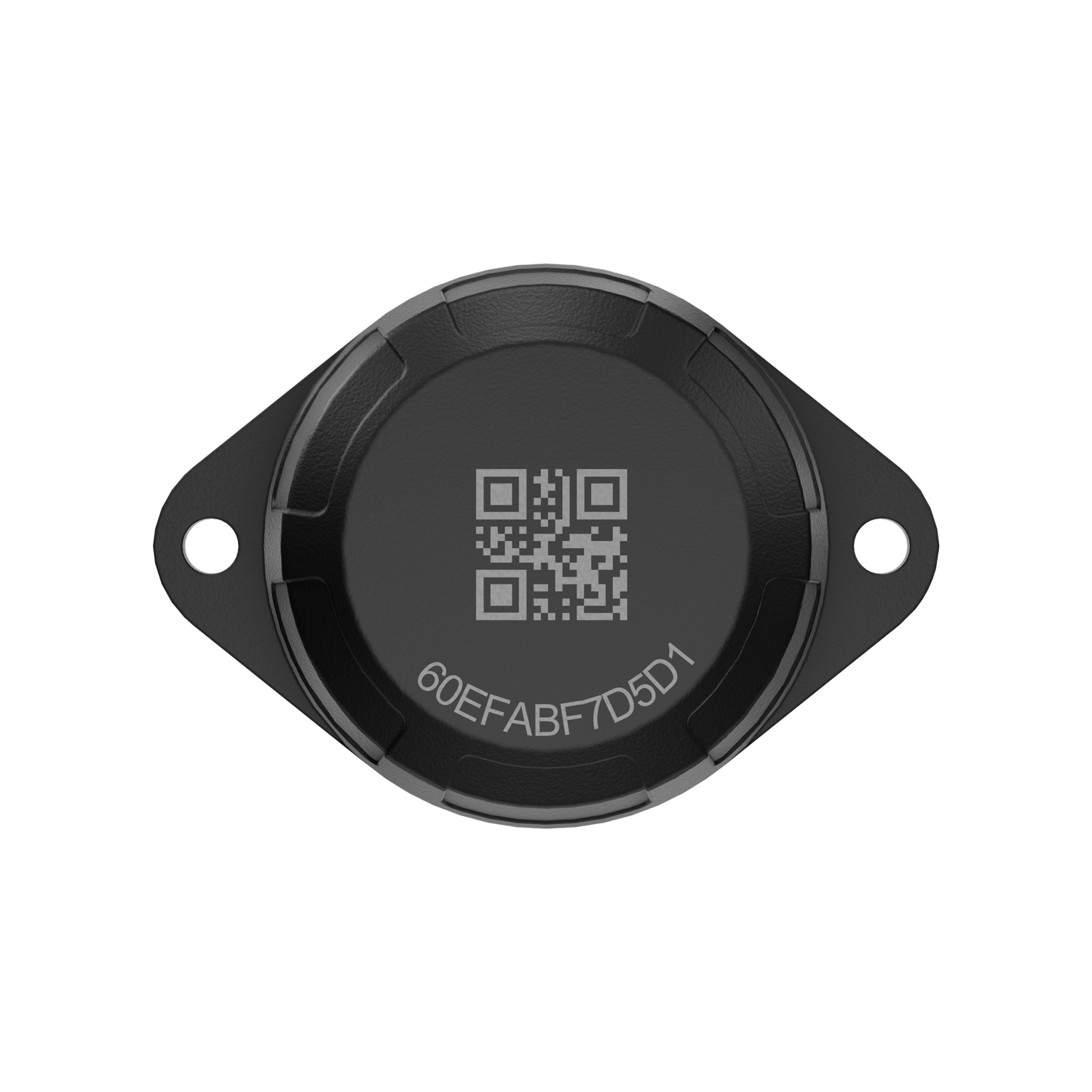

Dot-Tag-top-web
Bluetooth

Bluetooth Low Energy 6.0

Quickly detected by Bluetooth gateways.

Track and trace

Track and Trace

Identifies assets by broadcasting to nearby gateways. Location updates occur only when in range, supporting track-and-trace workflows.

Security

Secure App Configuration

Configure all settings using Digital Matter's Provisioning App on Android and iOS. Prevents unauthorized access and simplifies setup.

Battery Life

‘Deploy Once’ Battery Life

Operates for years on a single CR2450 battery with low battery alerts.

Rugged

Ultra-Rugged

IP68 and IK07-rated housing resists dust, water, and impact for reliable use in harsh environments.

Wire-free

Wire-Free Installation

Multiple installation options for securing device to asset or concealing within.



Product Information

Datasheet Open New Window Icon

Resources

Getting Started Guide Open New Window Icon DM BLE Provisioning Tool User Guide Open New Window Icon Download Mobile App - Google Play Store Open New Window Icon Download Mobile App - Apple Store Open New Window Icon
  • Bluetooth Beacon

  •  Ultra-low-power chip with Bluetooth Low Energy 6.0



  • Transmission Power

  • 7 dBm TX Power (max)

  • Non-Replaceable Batteries

  • 1 x CR2450 3V, 580mAh

    Battery pre-installed

  • Battery Type

  •  Lithium (LiMnO2)

  • Battery Life Estimates*

  • 5s advertising interval, 2dBm – 10+ years

    3s advertising interval, 4dBm – 7+ years

    2s advertising interval, 7dBm – 5+ years



    * Pending full energy profiling. Battery life estimates are influenced by several factors including parameter configuration, temperature, installation and orientation of the device, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com.

  • Sleep Current

  • <10uA
    Average current in lowest power state.

  • Dimensions

  • 59 x 42 x 13 mm (2.32 x 1.66 x 0.51″)

  • Device Weight

  • 20 g

  • Housing

  • Non-branded nylon glass housing is suitable for white labeling but bears an etched QR code with the MAC address of the device.

  • IP/IK Rating

  • Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.

  • Installation

  • Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.

  • Temperature Range

  • Operating: -30°C to +60°C
    Recommended Storage: 10°C to 30°C, Humidity 30%.
    Store in a cool, dry place.

  • Cellular Antenna

  • Internal

  • Adaptive Tracking

  • Configure parameters to balance efficiency and advertising rate.

  • Battery Life Monitoring

  • ‘Battery Low’ alert levels.

  • Configuration App

  • Configurable with Digital Matter’s provisioning app.

  • Digital Matter Gateways

  • Effortless Integration with Digital Matter Gateways

  • Third-Party Integration

  • Data can be obtained by third-party hardware via BLE Advertising Payload.

  • Data Security

  • Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

Please view our knowledge base for regulatory and network certifications.

Product Information

Datasheet Open New Window Icon

Resources

Getting Started Guide Open New Window Icon DM BLE Provisioning Tool User Guide Open New Window Icon Download Mobile App - Google Play Store Open New Window Icon Download Mobile App - Apple Store Open New Window Icon

Product Variants

DM Dot Tag

Bluetooth®

The DM DOT Tag is an ultra-rugged Bluetooth Low Energy beacon designed for long-life, wire-free track and trace applications.
DM Dot Sensor

Bluetooth®

Ultra-rugged Bluetooth Low Energy sensor beacon with impact, temperature, humidity, and magnet detection for track and trace applications.
DM Dot Glow

Bluetooth®

Ultra-rugged Bluetooth Low Energy beacon with long battery life and integrated LED for easy asset identification and track and trace applications.
