Skip Bin Tracking and Management with the Yabby Edge

Company Profile

Delete Group

Implemented Products

Operating over 600 waste and communal skip bins and containers across worksites throughout Finland, Delete Group (https://www.delete.fi/en/) is tracking and optimizing their business-critical waste management assets with the Yabby Edge Indoor/Outdoor battery-powered asset tracking device.

Delete Group is supported by our channel partners Prisma Quality. Visit http://prismaquality.net/ to learn more about Prisma’s asset tracking solutions.



Yabby Edge for Skip Bin Tracking and Management

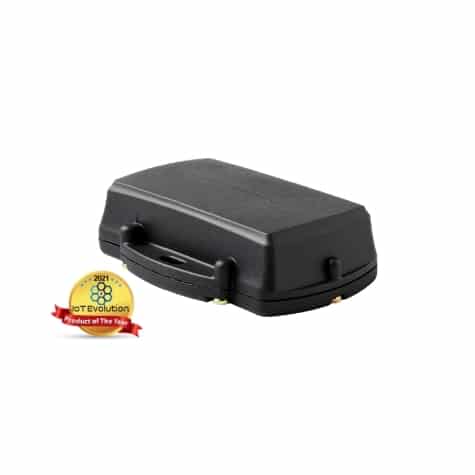

Featuring over 10 years of battery life on 3 user-replaceable AAA batteries, the Yabby Edge offers both outdoor and indoor location tracking and operates on global LTE-M/NB-IoT networks. Compact and IP67-rated ultra-rugged, the Yabby Edge is installed on the front of Delete’s range of skip bins near the lifting mechanism to ensure the device can reliably scan for GNSS while outdoors.

Skip Bin Tracking GPS Installation
Installation location of a Yabby Edge on a skip bin to maintain line-of-sight

If a GNSS fix cannot be obtained, for example in dense urban environments or if the bins are stored indoors, the Yabby Edge automatically switches to Wi-Fi scanning and/or Cell Tower Location to determine location, allowing Delete to maintain asset visibility even in difficult environments.

Cloud-based location solving on the Yabby Edge, an advanced power-saving technique that transfers the location processing workload traditionally handled on-device to the cloud, also enables ‘Deploy Once’ battery life and minimizes asset downtime, substantially reducing OPEX costs for businesses by eliminating frequent and expensive battery changes or manual recharge cycles.

In addition to size, ruggedness, and battery life, Delete Group also needed to upgrade their existing asset tracking hardware to the latest low-power LTE-M/NB-IoT connectivity to future-proof their bin tracking deployment. Seamless roaming between the two Cellular IoT networks was also required, as Delete’s bins move between the two networks regularly.

Skip Bin Live View

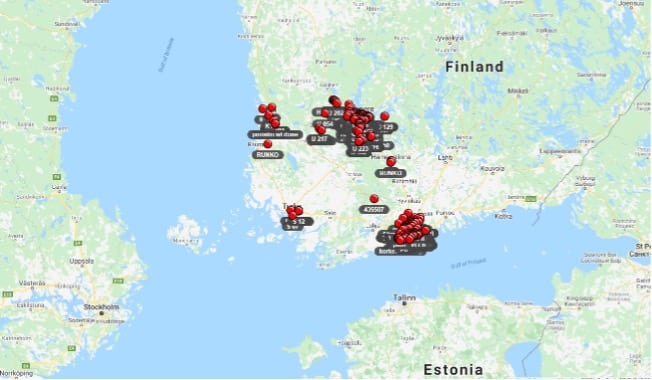

Live view of assets

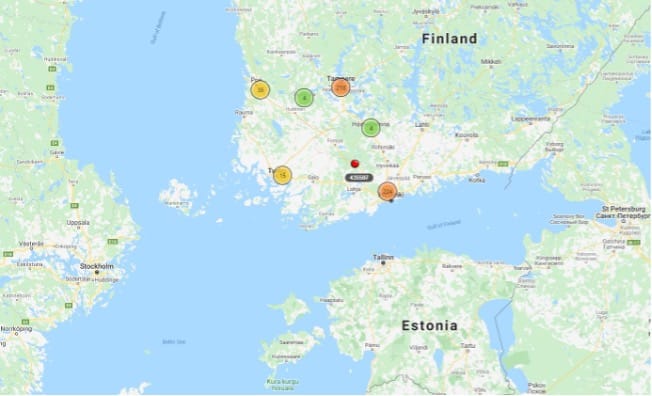

Clustering view of assets

With OTA updates, reporting frequency and other tracking parameters on the Yabby Edge can be quickly configured and applied remotely to best fit any bin tracking application. Currently configured to report twice daily regardless of movement, Delete’s Yabby Edges will perform reliably for an *estimated 10 years before requiring a battery change.



Daily Update Battery Estimates on Yabby Edge Cellular



# of Daily Updates Battery Life – Legacy Devices Battery Life – Yabby Edge
1 3 years 10 years
2 1.5 years 10 years
4 0.9 years 8 years
12 0.5 years 3.5 years
24 12 weeks 2 years



*Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Learn more about calculating battery life on the Yabby Edge.

From Prisma Quality:

“The Yabby Edge ticked all of Delete Group’s bin tracking requirements as a robust, rugged, and future-proof Indoor/Outdoor battery-powered asset tracking device, says Petter Kroneld, Co-founder at Prisma Quality. “Maintaining a bird’s eye view of where, how many, and how long their bins are deployed across worksites is critical in optimizing and improving the utilization of their most important assets and reducing downtime.”
